Vertical Double Glazing Machinery , Automatic Glass Production Equipment

Product Categories
Jinan Weili Machine Co., Ltd.
Contact Now

Vertical Double Glazing Machinery , Automatic Glass Production Equipment

Brand Name : WGM &WEILI

Model Number : WLCM25000

Certification : CE&BV&SGS

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 120sets per year

Delivery Time : 30 work days

Packaging Details : Machine packing with plywood pallet

Name : Vertical coating deletion machine

Usage : Making insulating machine

Color : Blue or customize

Warranty : 1 year

After service : Field maintenance and repair service

Weight : 2500kg

Control system : PLC

Productivity : 700-800units/8hs

Dimension(LxWxH) : 79000mmX2100mmX3350mm

Glass thickness : 3-19mm

Contact Now

WLCM2500 Vertical Automatic low-e coating deletion machine​

Features:

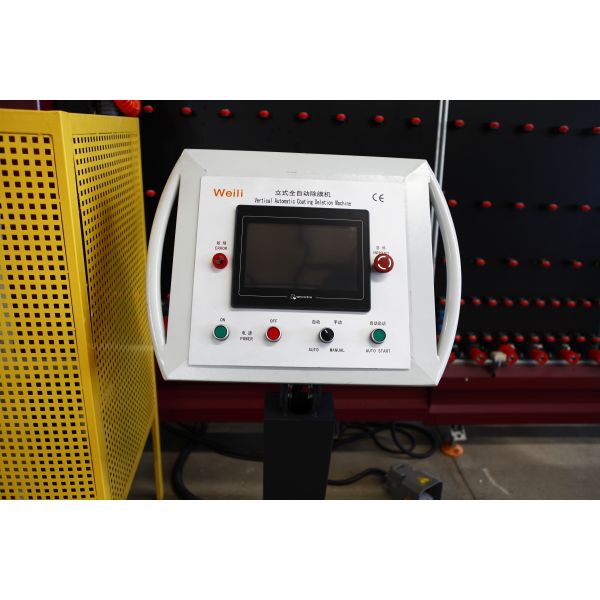

1 Panasonic PLC control system, touch screen interface

2 Low-e glass automatic coating identification,

3 four axis servo control system,

4 two way glass input,from right to left and from right to left

5 abrasive wheel connect surface auto adjustment system,you can choose different abrasive wheel to delete film

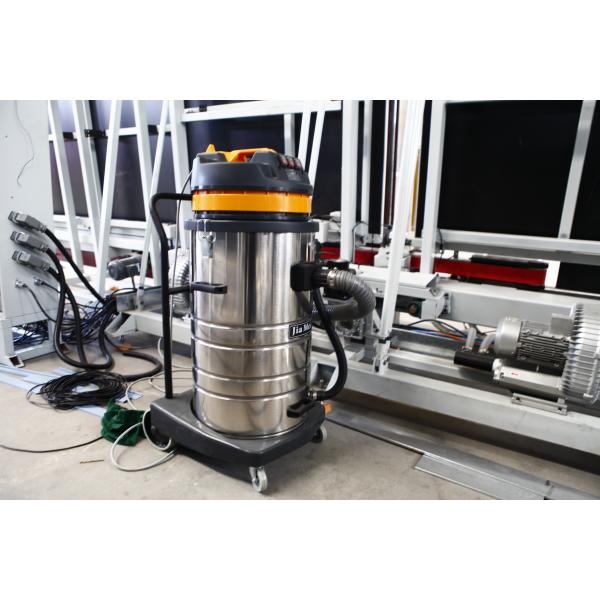

6 auto dedusting function, auto abrasive and modification function

Main components:

No.

 Name Brand Country
1 Low voltage components Schneider France
2 PLC Panasonic Japan
3 Topuch screen Weinview China,Taiwan
4 Transducer ENC China
5 Approach switch Omron Japan
6 Photoelectric switch Omron Japan
7 Servo motor Panasonic Japan
8 Pneumatic components Airtac China,Taiwan
9 Transmission motor DPG China

10

 Photoelectric switch Autonics Korea

Technique parameter:

Max glass processing size 2500*3000mm
Min glass processing size 350*400mm
Glass thickness 3-19mm
Glass transmission speed 30m/min
Edge deleting speed 0-15m/min
Abrasive wheel width 10/12/15mm
Air supply flow 0.2m^3/min
Air pressure ≥0.8Mpa
Total power 3p 380V,50HZ 7KW
Dimension(L*W*H) 7900*2100*3350mm

Packing & Delivery:

1.Machine packing with plywood pallet

2 according to customers` requirements
